High Performance Plastic Machinery Twin Screw Extruder Spare Parts Corrion Resistance Extruder Barrel Screw Elements
1. Descriptions
Welcome to inquire.We can supply single screw barrel/cylinder parallel twin screw barrel conical twin screw barrel bimetallic screw barrel nitrided screw barrel injection moulding machine screw barrel extruder machine screw barrel rubber machine screw barrel.

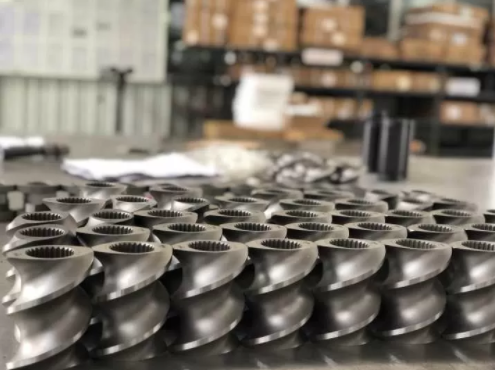

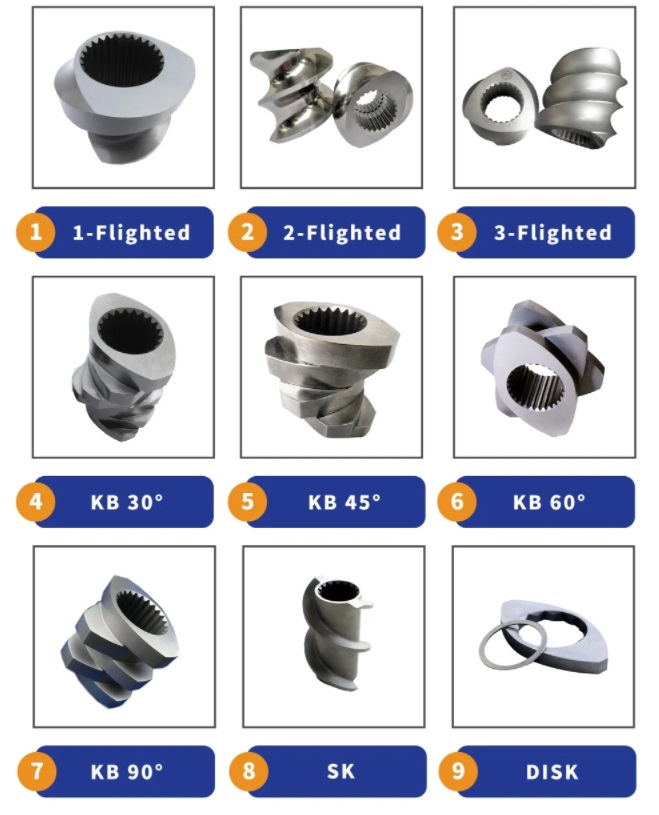

Screw elements are the main working parts for twin screw extruder which determined the quality and output of plastic products.With high quality,the screw elements assure plastic molecular mixing,cutting,spreading as well as reacting among themselves etc.Extremely high self cleaning performance assure the high quality of the whole production line,for this,our company combiend our experience for years,the merits about foreign countries and the customer's use,then take them into action,designed all kinds of suitable processing screw element with reasonable parameters,high self cleaning performance,wear resistance,corrosion-resistance.
We can satisfy your different material needs according to your different demands.
2. Technical Specification
| Design Details | Screw
I TYPE:inside is water/oil cooling system
II TYPE:outside is oil cooling system
Barrel
I TYPE:outside is air cooling system
II TYPE:out side is copper pipe around cooling system |
| Accessories | Stop ring+washers to adjust the space between screw and barrel |
| Technical Specification | Material:High quality 38CrMoAlA
Process:Advanced nitriding & bimetallic process
Hardness After Hardening & Tempering:HB280-320
Nitrided Hardness:HV900-1000
Nitrided Case Depth:0.45-0.8mm
Nitrided Brittleness:Less than Grade 2
Surface Roughness:Ra 0.4
Screw Straightness:0.015mm
Alloy Hardness:HRC 50-65
Alloy Depth:0.8-2.0mm |
| MOQ | 1 set(1 pair of screws and 1 piece barrel) |
| Type | Concial Twin Screw and Barrel |
3. Brief Application
Application: PVC
Production output:130kg/h~150kh/h
Lifetime: 20,000 hours
Old order from: West Europe,East Europe,South America,South Africa,Middle
4. Features:
Accrurate size
High capacity design
Wear resisting material
Easy maintenance
5. Screw&barrel use material
| Raw material | The finished product processing requirements |
| 38CrMoAIA, SACM645 | Nitriding treatment |
| Cr12MoV, Cr12, | Alloy steel |
38CrMoAIA, SACM645, 40Cr, AISI4140,
42CrMo | Alloy steel |
| 4Cr5MoSiV1,SKD-61,SKD-11 | Bimetallic of the inner hole centrifugal casting |
| GHII3 | nature hard after high temperature |
