Cincinnati Argos 72 / 93 / 114 / 135 / 132 Parallel Twin Screw Barrel
Descriptions
The Cincinnati Argos 72/93/114/135/132 parallel twin screw barrels are specialized components that are designed for use in a variety of extrusion applications. These twin screw barrels are specifically engineered to provide a high degree of mixing and dispersion, as well as excellent melt quality and throughput performance.
The Cincinnati Argos series of twin screw barrels feature a modular design that allows for easy customization and adaptation to a wide range of extrusion applications. They are made from high-quality materials and are precision-engineered to meet the exacting requirements of modern extrusion processes.
Some key features and benefits of the Cincinnati Argos series of twin screw barrels include:
High mixing and dispersive performance: The intermeshing design of the screws and the optimized screw geometry provide excellent mixing and dispersion, ensuring homogenous and consistent output.
Excellent melt quality: The Cincinnati Argos series of twin screw barrels are designed to provide excellent melt quality, with low shear stress and minimal melt degradation.
High throughput performance: The Cincinnati Argos series of twin screw barrels are capable of processing high volumes of material, with excellent melt conveying and pumping performance.
Modular design: The modular design of the Cincinnati Argos series of twin screw barrels allows for easy customization and adaptation to different extrusion applications.
Bloom supplies cylinder barrel suitable for the following extruder products lines :
-APV -KOBE -OMC
-Buhler -KraussMaffei -Theysohn
-Buss -Berstorff- -Toshiba
-Clextral -Labtech -USEON
-Lantai - others
-JSW -Leistritz
-Keya -Maris
| Code No | Description | Materials | Alloy Thickness | Application |
| BLM-B-01 | Barrel | 38CrMoAl+Alloy | 2mm | Extruder |
| BLM-B-02 | Barrel | 45 Steel +Alloy | 3mm | Extruder |
| BLM-B-03 | Barrel | 316Steel+Alloy | 5-20mm | Extuder |
| BLM-B-04 | Barrel | 304Steel+Alloy | 5-20mm | Extruder |
Size and capacity
Here is list of our general design data, which may be updated in some different circumstance.

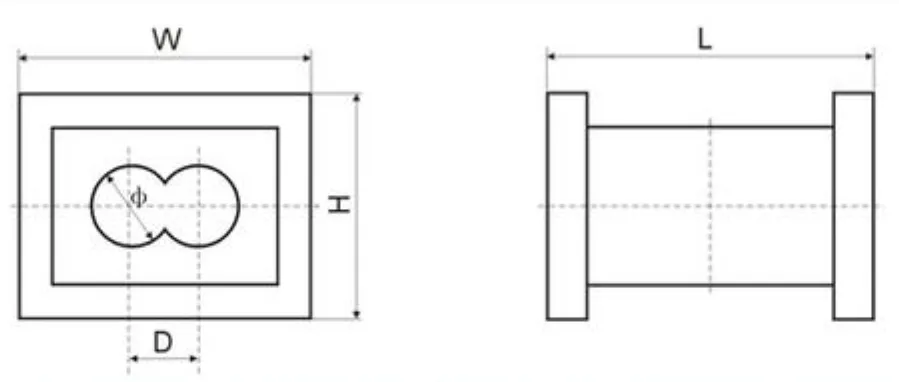

| No | Size W*H*L (mm) | Hole Diameter Φ (mm) | Center Distance D(mm) |
| BLM-001 | 115*105*132 | Φ23 | 18.4 |
| BLM-002 | 135*115*120 | Φ30.6 | 26 |
| BLM-003 | 190*150*190 | Φ51 | 42 |
| BLM-004 | 210*160*220 | Φ53.3 | 48 |
| BLM-005 | 210*170*240 | Φ60 | 52 |
| BLM-006 | 310*240*360 | Φ92 | 78 |
| BLM-007 | 330*240*420 | Φ100 | 91.5 |
| BLM-008 | 370*300*410 | Φ134 | 110 |
| Note:We can customize all sizes according to your drawings. |
Types of Barrels
Standard for classification: Design geometry Standard for classification: With inner or not
* Feeding barrel * Solid barrel
* Closed barrel * Barrels with inners
* Vent barrel
* Combi barrel
* Extended degassing barrel
* Combi barrel with backward venting
We offer a broader choice of materials:
Solid barrels
*Nitrided steel barrels *Tooling steel barrels *Bimetallic
Barrel with installed inner
* made of PM-HIP solid *WR13
By working closely with customers in choosing optional materials,we can minimize wear and tear and associated costs.
All kinds of SJZ and SJP extruders that our company designs especially for producing the PVC pipe and profile, our extruders can promise a good plasticization, high capacity and advanced electric control, and the electrical cabinet can be chosen by customer according to their own demands.
