Bimetallic Twin Screw and Barrel for Plastic Recycling Agricultural Making Extrusion Machine
Product Description:
Bloom manufacture screw elements,barrels and other extruder machinesWe have provided machines with matching screw and barrel, such as engel (Engel), davis-standard (Davis standard), weber (Weber), berstorff (Berstorff), Battenfeld, Cincinnati, Taiwan Zhuyou, South Nanrong, Zhende, Haitian, Haitai, Hangzhou Tairui, Chenhsong, Korea Woojin, Japan Sumitomo, sumida, Liansu, Hongqi, Jugang, Yuanfeng, Xiongsu, etc. Domestic and foreign plastic machinery companies.
Conical twin-screw extruder is an efficient mixing and extrusion equipment. The machine has the characteristics of low shear rate, difficult material decomposition, uniform plasticizing and mixing, stable quality, high output, wide application range and long service life.
Main Charactors:
Using machining center finishing, reasonable processing technology, advanced testing equipment, to ensure that the processing accuracy of each product.

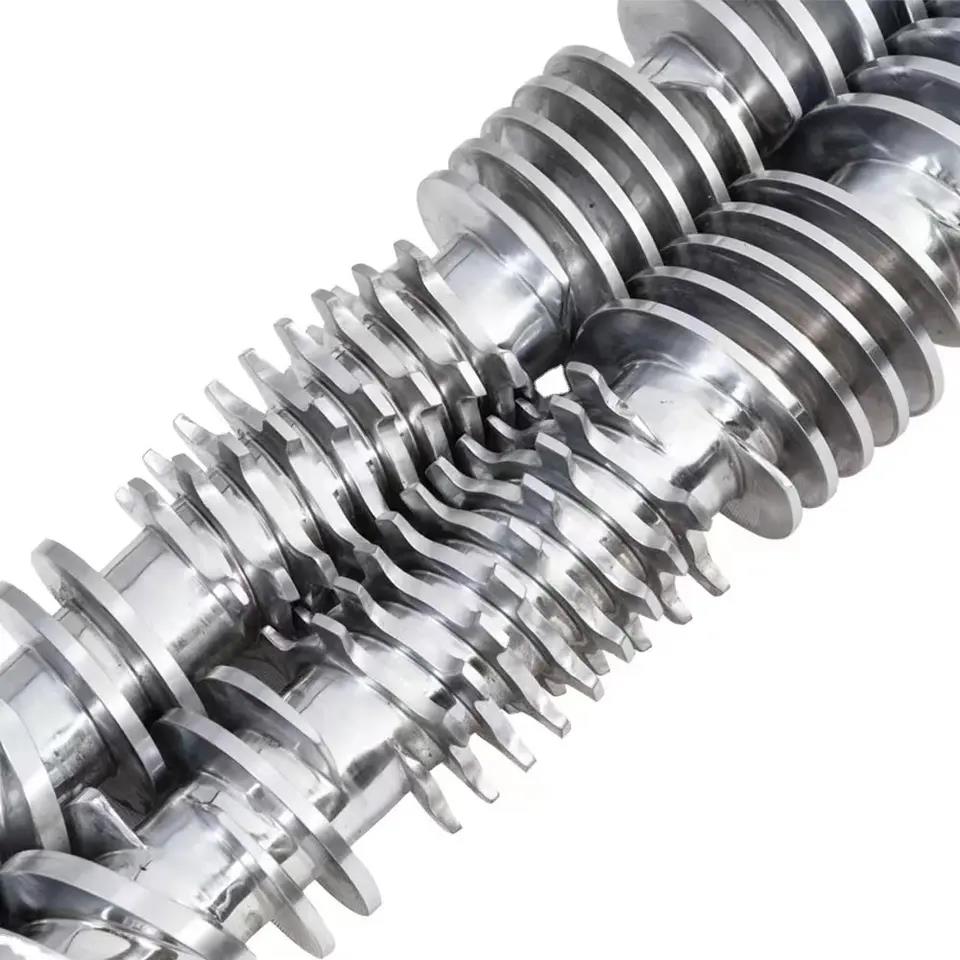

Twin-screw extruder screw element:
- convenient interchangeability by agile combination.
- fulfill efficient self-cleaning, transmission, compounding, pressure-forming and etc.
- made of high speed tool steel W6Mo5Cr4V2, or anti-corrosion steel 38CrMoAlA by speed treatment.
The flexible modular principle is realized with screw barrel sections from the wide range of different designs possible. Fast, intensive and uniform heating of the screw barrel section is ensured by electrical heaters. The barrel sections are cooled with water by means of an internal bore system with bores arranged close to the inside barrel wall.
| Product name | Conical Twin Screw Extruder |
| Other name | Conical twin extruder |
| Application | Plasticizing PVC or wood-plastic products |
| Features | stable quality,high output,wide application range |
| Drive | Motor |
The main products are precision screw barrels (nitrided screw barrels, double alloy screw barrels, stainless steel screw barrels, fully hardened screws, high-speed tool steel screw barrels): injection molding machine screw barrels, extruder screw barrels, Blow molding machine screw barrel, chemical fiber machine screw barrel, single screw barrel, parallel twin screw barrel, conical twin screw barrel, screw barrel accessories;...
The products are made of high-quality 38crmoala; high-quality sacm645; high-quality skd11; high-quality skd61; 9cr18mov and other high-quality materials, which are tempered and formed. The surface can be nitrided, hard-plated, spray-welded hard alloy and other processes. The product has the advantages of high wear resistance, corrosion resistance and long service life. Widely applicable to various rubber and plastic raw materials, such as: pe, pp, pvc, ps, abs, pa, pom, pc, psv, ptfe, pvr, pr, up, pec, pf, vf, mp, pmma, pet, pbt , pps, mppo, pi, lcp, etc.
Material
1)Base material of bimetallic barrel:45# 40Cr
2)Bimetallic type:centrifugal casting
3)Application: for injection molding machine and extruder
4)Products range: Inner diameter ø12- ø350mm
5)Effective length: 12000mm
6)Nitrided layer thickness: 0.50-0.80mm
7)Hardness: HV960
8)Straightness: 0.015mm/m
9)Suitable plastic material: PP, PE, ABS, AS, PS etc.
For our bimetallic screw ,we have adopted a new technology of surface hardening process by the whole screw surface insted of only hard facing the screw flights by PTA treatment.
For bimetallic barrel ,we have raised its tungsten car-bide content to 30%and 50% from the previous 10% of tungsten carbide and increased the processing length to 4000mm from the previous length of 3000mmm
1. Parallel twin-screw barrel series:
φ50/2 (2 represents twin screw), φ65/2, φ80/2, φ90/2, φ105/2, φ125/2, φ130/2, φ150/2, φ180/2, φ200/2

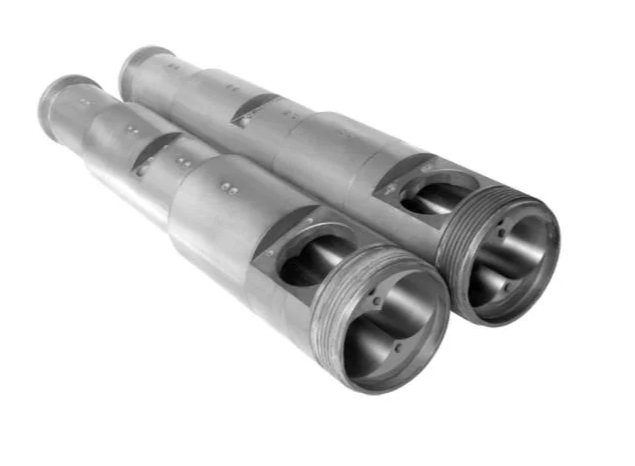

2. Conical twin-screw barrel series
sjs 35 (φ35/80-2), sjs 51 (φ51/105-2), sjs 55 (φ55/113-2), sjs 65 (φ65/132-2), sjs 80 (φ80/156-2), sjs 92 (φ92/188)
Screw steering: different directions outward
Screw speed:
1-40,1-32,1-36,1-32,1-32,1-32
Effective length of the screw (the effective length of the screw generally refers to the length of the screw part):
810mm, 1070mm, 1200mm, 1441mm, 1800mm, 2500mm
3. Extrusion and injection molding single screw, barrel series
Specifications: diameter φ15mm-diameter φ360mm
Aspect ratio (the effective length of the screw divided by the diameter of the screw): l/d=15-45
4. Rubber screw and barrel series
4.1 Pin screw, barrel
Specifications: diameter φ75mm-diameter φ200mm
4.2 Cold and hot feeding screw, barrel
Specifications: diameter φ30mm-diameter φ250mm

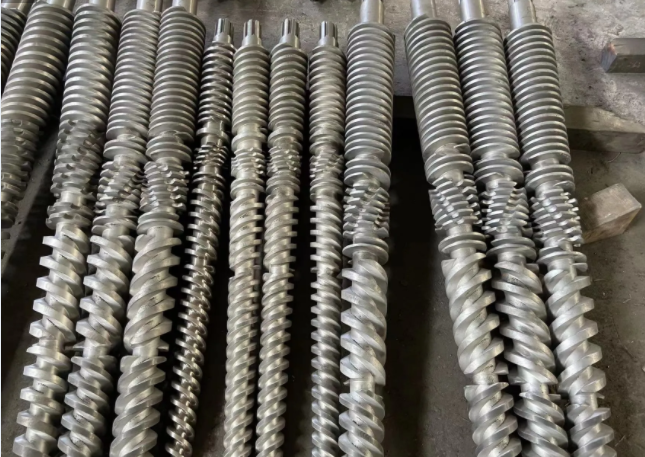

Production Process Show
Testing Equipments Show
Packing&Delivery
Company Introduction
Conical Twin Screw Extruder
